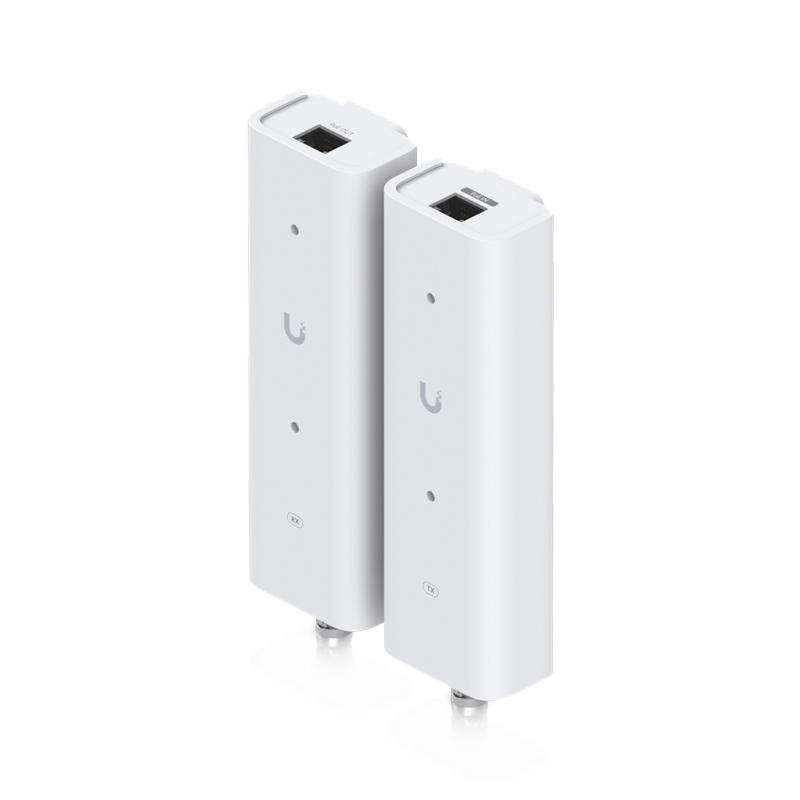

PoE Over 2-Wire Retrofit Extender
€161.54
The UACC-Retrofit-PoE-2Wire is a pair of extenders that extend PoE via twisted-pair or coaxial cables, ideal for retrofit scenarios.
PoE Over 2-Wire Retrofit Extender
The UACC-Retrofit-PoE-2Wire is a pair of extenders that extend PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.
Transmitter
- (1) PoE++ input
- (1) 2-wire output
- (1) 2-wire to BNC adapter
Receiver
- (1) PoE/PoE+ output
- (1) 2-wire input
- (1) 2-wire to BNC adapter
| Mechanical | |
| Dimensions |
|
| Weight |
|
| Housing material | Polycarbonate |
| Mounting material | Polycarbonate |
| Coaxial connector | BNC female |
| Hardware | |||||
| Network interface |
|
||||
| Feeding method | PoE++ | ||||
| PoE input | (1) PoE++, 50V DC, 1.2A | ||||
| PoE output | (1) PoE+, 48V DC, 0.6A | ||||
| Max. power consumption | 3W (without PoE output) | ||||
| ESD/EMP protection | Air: ±8kV, contact: ±4kV | ||||
| Max. recommended cable length | UTP 24AWG 0.18ohm/meter | RG-6, 0.14ohm/meter | |||
| Cable length |
Bandwidth (Mbps) |
Max Exit (W) |
Bandwidth (Mbps) |
Max output (W) |
|
| 50 m | 85 | 25 | 85 | 25 | |
| 100 m | 85 | 13 | 85 | 20 | |
| 150 m | 85 | 9 | 85 | 13 | |
| 200 m | 85 | 6 | 85 | 9 | |
| 250 m | 80 | 4 | 85 | 7 | |
| 300 m | 75 | 3 | 85 | 6 | |
| 350 m | 70 | 0 | 85 | 4 | |
| 400 m | 65 | 0 | 82 | 3 | |
| 450 m | 60 | 0 | 80 | 0 | |
| 500 m | 55 | 0 | 75 | 0 | |
| 550 m | 50 | 0 | 70 | 0 | |
| 600 m | - | - | 65 | 0 | |
| 650 m | - | - | 60 | 0 | |
| 700 m | - | - | 55 | 0 | |
| 750 m | - | - | 50 | 0 | |
| LED | white | ||||
| Ambient temperature | -10 to 40° C (14 to 104° F) | ||||
| Ambient humidity | 5 to 90% non-condensing | ||||
| Certifications | CE, FCC, IC |
