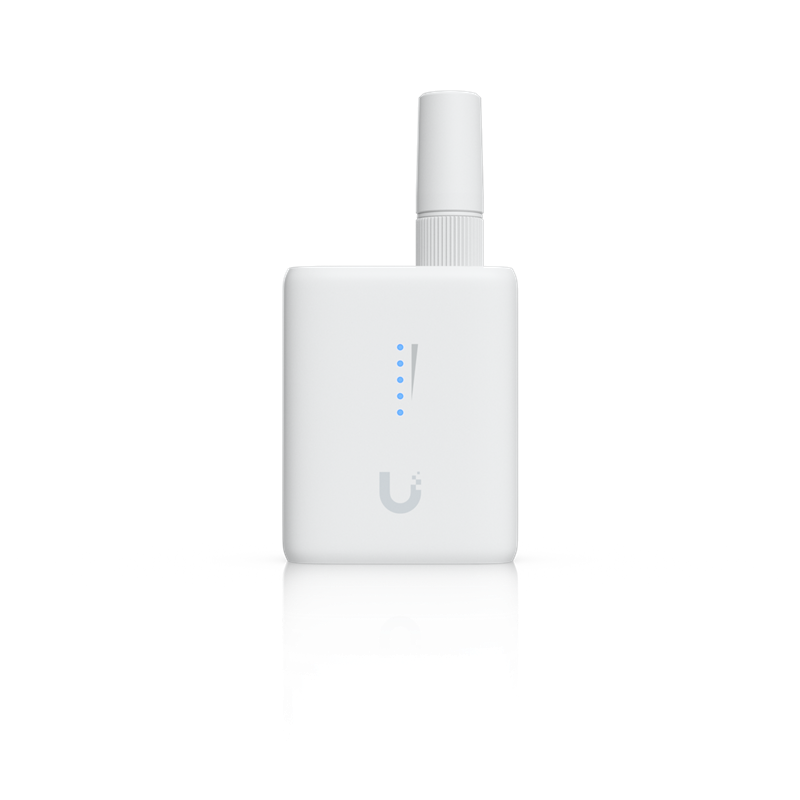

Device Bridge IoT
€79.86
Ultra-compact wireless bridge for IoT devices, featuring integrated UniFi WiFi Auto-Link, versatile mounting options and power delivery via USB Type-C or a 4-pin DC connection.
Device Bridge IoT
Ultra-compact wireless bridge for IoT devices, featuring integrated UniFi WiFi Auto-Link, versatile mounting options and power delivery via USB Type-C or a 4-pin DC connection.
| Overview | |
| Dimensions |
|
| WiFi standard | WiFi 4 |
| Spatial streams | 2 |
| Mounting options | Wall, DIN rail |
| Assembly | Mounting bracket included |
| Feeding method |
|
MIMO
|
|
Max. data rate
|
300 Mbps (BW40) |
Antenna amplification
|
|
Max. TX power
|
20 dBm |
| Max. output TX power | 20 dBm (combined) |
Supported data rates
|
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| Wireless security | WPA2 AES (always active) |
| Hardware | |
| Max. power consumption | 2.3 W |
| Supported voltage range |
|
| Network interface | (1) 10/100M RJ45 port |
| Antennas |
|
| Management | WiFi |
| Channel bandwidth | 20/40 MHz |
| Weight |
|
| Housing material | Polycarbonate |
| Mounting material | Polycarbonate |
| Knob | (1) Factory reset |
LEDs
|
|
| NDAA compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating temperature | -10 to 50 °C (14 to 140 °F) |
| Operating humidity | 5 to 95% non-condensing |
