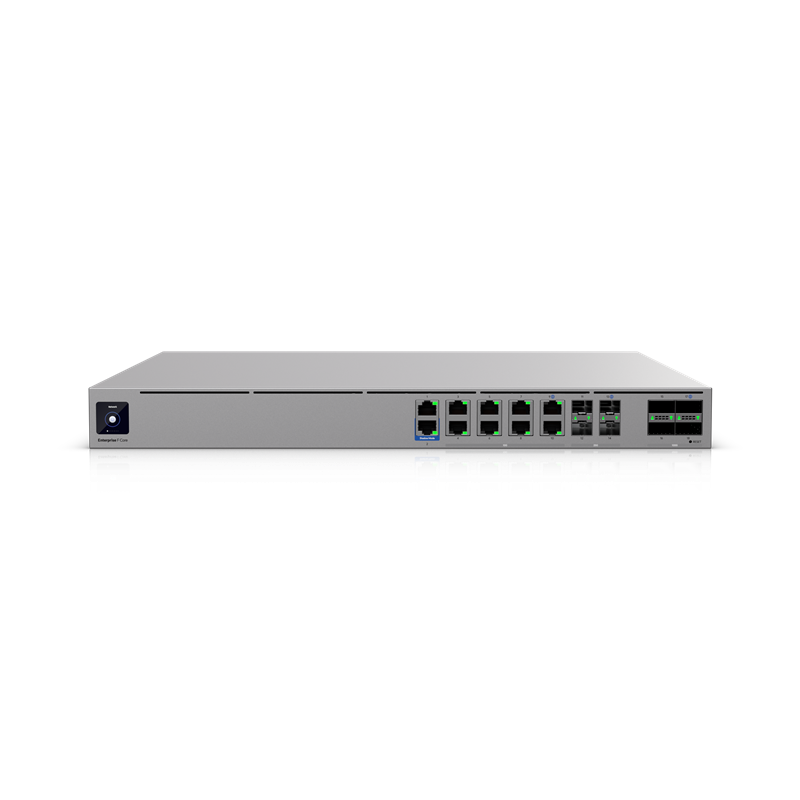

Enterprise Firewall Core

€6,165.56

Enterprise cloud gateway with a capacity of 100 Gbps, featuring 79 Gbps IDS/IPS throughput, support for more than 22,500 concurrently connected clients and more than 5,000 concurrent IPsec tunnels.

Quantity
delivery time unknown

Enterprise Firewall Core

Enterprise cloud gateway with a capacity of 100 Gbps, featuring 79 Gbps IDS/IPS throughput, support for more than 22,500 concurrently connected clients and more than 5,000 concurrent IPsec tunnels.

Overview
Dimensions 442.4 × 43.7 × 400 mm (17.4 × 1.7 × 15.8 in)
UniFi Application Suite
  • Network
Capacity
  • Managed UniFi devices: 2,250+
  • Simultaneously connected users: 22,500+
  • Maximum number of WAN ports: 8
Standard WAN ports
  • (1) 100G QSFP28
  • (1) 25G SFP28
  • (1) 10 GbE RJ45
Port configuration
  • 1 GbE RJ45
  • 10 GbE RJ45
  • 25G SFP28
  • 100G QSFP28
  • Management Gateway (MGMT)
  • Console port
  • 2 × (1G/100M/10M)
  • 8 × (10G/5G/2.5G/1G/100M)
  • 4 × (25G/10G/1G)
  • 4 × (100G/40G)
  • 1 × (1G/100M/10M)
  • 1
Performance IDS/IPS throughput: 79 Gbps
Session capacity
  • Simultaneous SSL/TLS inspection sessions: 10,000
  • Simultaneous sessions: 10 million
  • New sessions per second: 120,000
Form factor Rack mounting (1U)
Redundancy
  • Shadow Mode (VRRP)
  • Gateway failover
  • 2 hot-swappable power supplies (PSUs)
Overview
  • Stateful Firewall:
  • Application-aware Layer 7 firewall:
  • SSL inspection and URL filtering:
  • DPI (Deep Packet Inspection) and traffic identification:
  • Zone-based firewall with advanced filtering (regions, domains, applications):
  • Content Filtering: Intrusion Prevention System (IPS/IDS):
  • Ad blocking:
  • IDS/IPS signatures:
  • more than 95,000 (with CyberSecure Enterprise)
SD-WAN
  • License-free SD-WAN:
Site-to-Site VPN
  • Site Magic:
  • IPsec
  • OpenVPN
VPN server
  • Identity Endpoint One-Click VPN:
  • Teleport Zero Configuration VPN:
  • WireGuard
  • OpenVPN:
  • L2TP:
VPN client
  • OpenVPN:
  • WireGuard:
Network functionality
  • Multi-WAN load balancing:
  • Shadow Mode (VRRP) High Availability:
  • LACP portal aggregation:
Dynamic routing
  • OSPF
  • BGP
Other network functions
  • Advanced QoS:
  • Multicast DNS (mDNS):
  • Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT):
  • Integrated RADIUS server:
  • RADIUS over TLS (RadSec):
  • Additional Internet Failover with UniFi LTE Backup:
  • Report on internet quality and outages:
  • MAC address table:
  • Policy-based WAN and VPN routing:
  • Configurable DHCP server:
  • IPv6 support for ISPs:
  • IGMP Proxy:
  • Support for all traffic flows:
  • ✓
  • ✓
  • ✓
  • ✓
  • ✓
  • 130,000 mentions
  • ✓
  • ✓
  • ✓
  • ✓
  • ✓
Hardware
Maximum power consumption: 171 W
Nutrition method Universal AC input, 100–240 V AC, maximum 7.5 A, 50/60 Hz
oeding: 2 × hot-swappable AC/DC 550W PSU
Supported voltage range: 100–240 V AC
Heat output: 585 BTU/hour
Processor: 24-core ARM® v9 at 2.5 GHz
Working memory: 32 GB
Internal storage: Integrated 128 GB SSD
Weight 7.85 kg
Housing CNC-milled aluminium and SGCC steel
Display 1.3-inch touchscreen (LCM)
Management
  • Ethernet
  • Bluetooth
LED indicators
  • Ethernet:
  • SFP28:
  • QSFP28:
  • Replaceable fan:
  • CRPS:
  • ✓
  • ✓
  • ✓
  • ✓
  • ✓
Buttons 1 × Factory reset
Protection ESD/EMP protection: Air: ±8 kV, contact: ±4 kV
Operating temperatureL: 0 to 40 °C
Relative humidity: 5% to 95%, non-condensing
NDAA compliant: ✓
Certifications: CE, FCC, IC
Requirements for the mobile app
  • UniFi iOS™: version 10.35.0 or higher
  • UniFi Android™: version 10.38.1 or higher
001-02111
