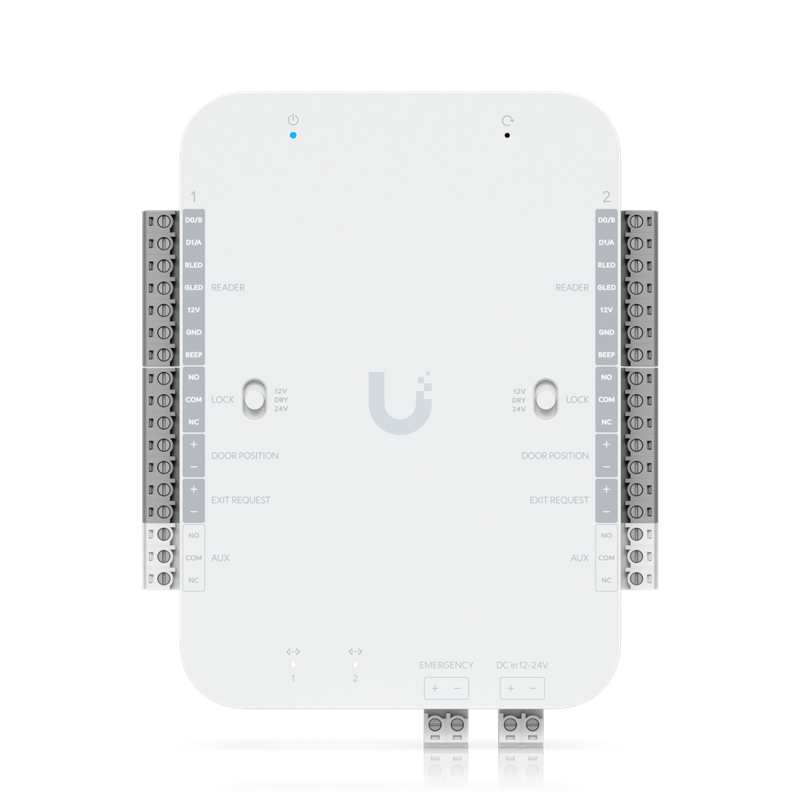

Retrofit Hub
€240.79
DC-powered hub that supports Wiegand and OSDP readers and provides access and exit control for up to two doors.
Retrofit Hub
DC-powered hub that supports Wiegand and OSDP readers and provides access and exit control for up to two doors.
| Overview | |
| Dimensions | 140 x 120 x 45 mm (5.5 x 4.7 x 1.8") |
UniFi Application Suite
|
✓ |
| Supported doors | 2 |
| Entrance terminals |
|
| Feeding method | DC 12/24V |
| NDAA compliant | ✓ |
| Weight | 420 g (14.8 oz) |
| Casing material | Polycarbonate |
| Mounting material | SGCC steel |
| Assembly | DIN rail (included) |
| Hardware | ||||
| Digital inputs |
|
|||
| Dry contact relay (Dry Output Relay) |
|
|||
| Powered Output Relay |
|
|||
| Indoor/outdoor use | Indoors only | |||
| Ambient temperature (operational) |
|
|||
| Ambient humidity (operational) | 5 to 90% (non-condensing) | |||
| Network interface | (2) 10/100 MbE RJ45 ports | |||
| Power supply | DC 12/24V | |||
| Max. energy consumption | 50W | |||
| LEDs | W/B Learn More | |||
| Buttons |
|
|||
| Recommended maximum cable length | ||||
|
18 UACC-Cable-DoorLockRelay length:
|
20 AWG length |
22 AWG length |
24 AWG length |
|
|---|---|---|---|---|
|
UA Retrofit Reader (250mA)
|
152.4 m (500 ft) | |||
| UA-Lock-Electric (400mA) |
100 m (328 ft) | 66 m (217 ft) | 42 m (138 ft) | 25 m (82 ft) |
| UA-Lock-Magnetic-270kg (800mA) |
46 m (151 ft) | 30 m (167 ft) | 20 m (98 ft) | 12 m (29 ft) |
| UA-Lock-Magnetic-540kg (500mA) |
80 m (262 ft) | 51 m (167 ft) | 32 m (105 ft) | 20 m (66 ft) |
| Other locks (1A) |
36 m (118 ft) | 24 m (79 ft) | 15 m (49 ft) | 9 m (30 ft) |
| Certifications | CE FCC IC |
| Software | |
| Management application | Access |
| Software information | The software version can be checked at https://unifi.ui.com |
005-01522
